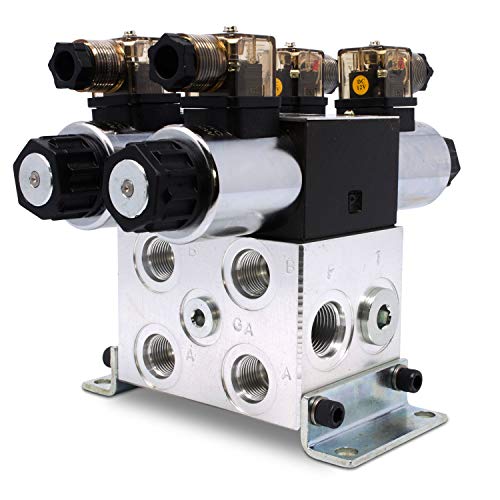

Electric Hydraulic Double Acting Directional Control Valve, 2 Spool, 15 GPM (A Spool, Controls Double Acting Cylinders, 12 Volt)

Brand: Summit Hydraulics

Features:

• 2 Spool, A Spool (Controls Double Acting Cylinders), 12 volt
• Flow Rating: 15 GPM
• This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic cylinder. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This is a two station, open-center, series configuration setup.
• All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders, A and B ports are closed to Tank in neutral position
• Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI

Part Number: D60-2A-12V

Details: This double acting hydraulic control valve is designed to control the flow of hydraulic fluid in/out of a hydraulic cylinder. These valves can be used to add additional auxiliary hydraulic functions or replace a current hydraulic control valve. This is a two station, open-center, series configuration setup. A Spool (Controls Double Acting Cylinders) All spools are double acting with spring return to neutral position, A spool is designed to control double acting cylinders A and B ports are closed to Tank in neutral position Valve Body Features: Solid aluminum housing designed for rugged use Max Operating Pressure: P = 5080 PSI, T = 3050 PSI, A & B = 5080 PSI Flow Rating: 15 GPM Aluminum Body 3000 PSI Rated #8 SAE O-Ring ports ensure solid seal and prevent blockage Valve uses DIN connections for great functionality Solenoid Specifications: Nominal Voltage Tolerance +/- 10% Power Rating: 37 Watts Amps: 3.08 100% Duty Cycle 12 Volt

EAN: 0765552696742

Package Dimensions: 13.0 x 10.0 x 4.0 inches
