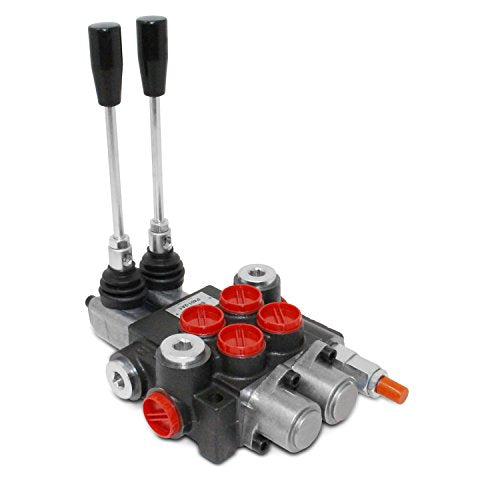

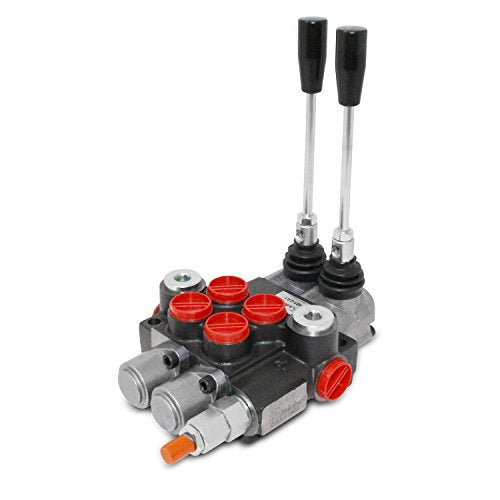

Monoblock Hydraulic Directional Control Valve, 2 Spool, 11 GPM, SAE Ports

Brand: Summit Hydraulics

Features:

• 2 Spool, 11 GPM Flow, 3625 Max PSI
• All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders
• Used for open center systems (Pump to Tank Flow)
• Anti-drop load checks on each spool
• Adjustable Relief Valve Range: 1500 to 3625 PSI

Details: Monoblock Hydraulic Directional Control Valve, 2 Spool, 11 GPM SKU: P402-2A1 This monoblock valve is a hydraulic directional control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors. Common Uses:  Operate hydraulic cylinders (Double-Acting or Single-Acting) Operate hydraulic motors ("D" Spool Required) Install rear remotes on a tractor Benefits: 2 Spool valve with compact design allows for installations in tight areas All spools are standard double acting with spring return to neutral position which are ideal for double acting cylinders Used for open center systems (Pump to Tank Flow) - closed center option available Anti-drop load checks on each spool Precision ground and hard chrome-plated spools assure a long life High-tensile strength cast iron monoblock construction SAE O-Ring ports ensure solid seal and prevent blockages Capable of closed center or Power Beyond (conversion plug required) Vertical or horizontal handle mount Adjustable Relief Valve Range:  1500 to 3625 PSI Used as motor or single-acting spool possible (#8 SAE port plug required)   Features: Max Operating Pressure: P = 3625 PSI, T = 725 PSI, A & B = 4350 PSI Flow Rating: 11 GPM (40 l/min) A & B Work Ports:  #8 SAE O-Ring (3/4”-16) Thread Inlet Port: #10 SAE O-Ring (7/8”-14) Thread Outlet Port: #10 SAE O-Ring (7/8”-14) Thread 2 – 5/16” Mounting Holes Made in Europe

EAN: 0765552693772

Package Dimensions: 9.0 x 7.5 x 4.5 inches
